Variable Frequency Motor

If you need anything, feel free to contact us anytime.
Get a Quick Quote
crane hoist motor selection motor hoist crane overhead-crane-motor-type Variable-Frequency-Motor

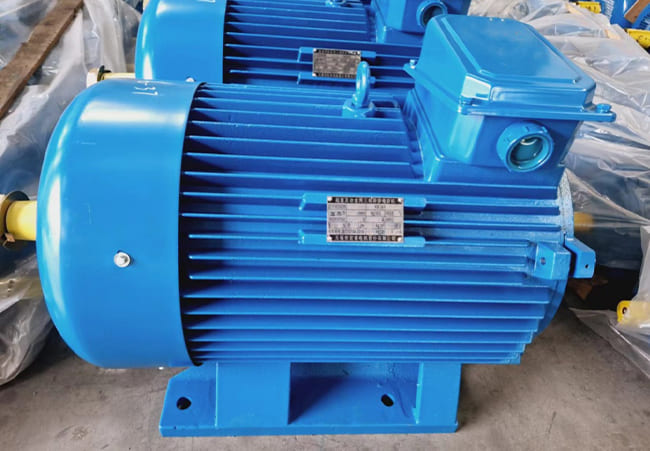

Variable Frequency Motor

  • Energy Saving: The drive motor adjusts operating speed according to load conditions, reducing power consumption by 30–50%.

  • Smooth Control: Works with frequency control systems and motor speed controllers to achieve precise 0–100% speed regulation.

  • Flexible Options: Compatible with AC, DC, and three-phase variable frequency drive motor applications across different system requirements.

  • Lower Wear: Soft start and controlled braking minimize mechanical stress on gears, pumps, and belt-driven components.

  • Long Service Life: Enhanced cooling using a dedicated motor fan or external ventilator ensures stable and durable operation.

Request For Our Latest Price

H (optional VPI insulation)

Parameter Specification Range</b>
Power Range 0.75 kW – 315 kW (custom options available)
Frequency Range 0 – 60 Hz (up to 100 Hz on request)</td>
Speed 720 / 960 / 1440 / 2880 RPM
Pole Options 2 / 4 / 6 / 8 Poles
>Speed Control Accuracy</td><td width=”365″>±0.5% (with closed-loop control)
idth=”201″>Efficiency Classes IE2 / IE3 / IE4
Cooling Methods IC411 (self-cooled) / IC416 (force-cooled)
Protection Rating IP44 / IP54 / IP55
Insulation Class</td> F /
Standards IEC / GB / ISO compliant

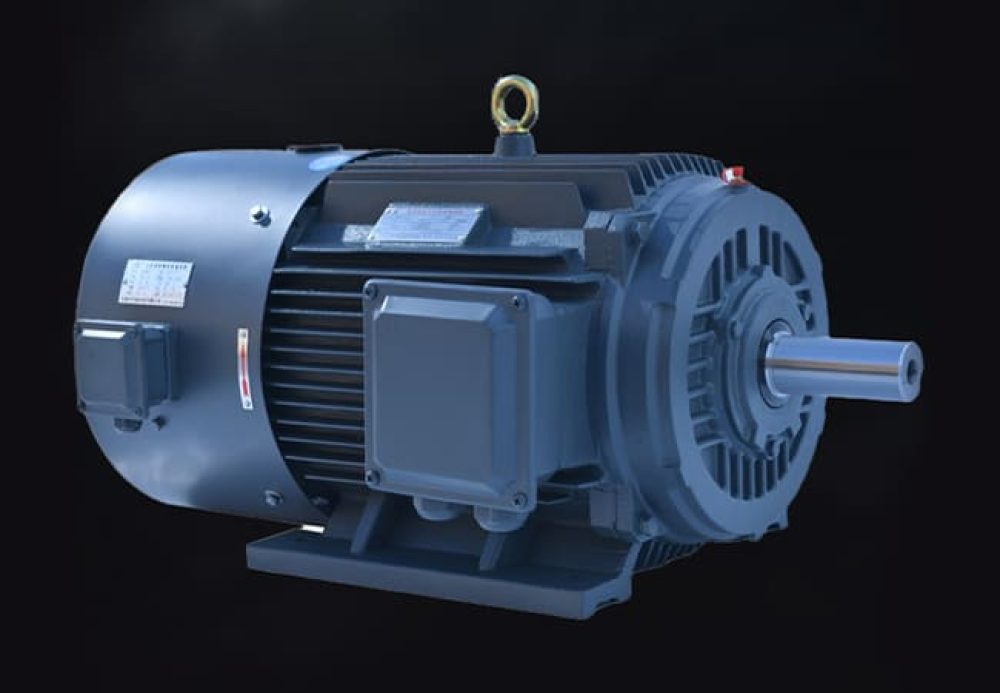

crane hoist motor selection
Download Our Catalog

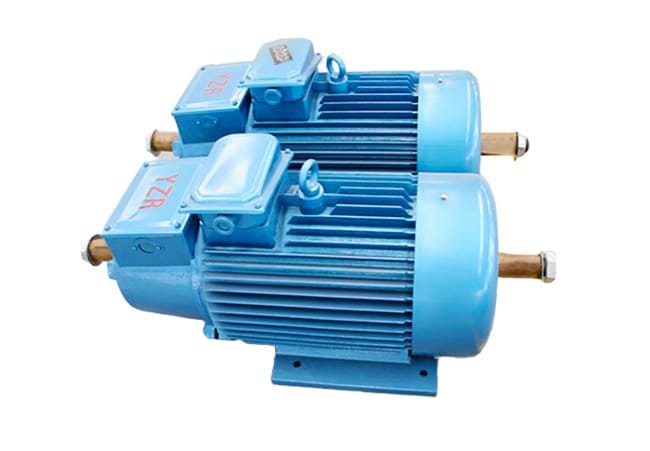

Product Features and Applications

1.Energy Savings: Adapts motor speed to load, cutting energy use by 30–50%.

2.Durability: Reduced mechanical wear extends crane component lifespan.

3.Safety & Control: </strong>Works with Variable Frequency Motor Controllers for precise feedback and overload protection.

Whether used in bridge cranes, gantry cranes, winches, or tower cranes, a variable frequency motor ensures smooth load handling, precise control, and powerful lifting performance.

Send Inquiry Now

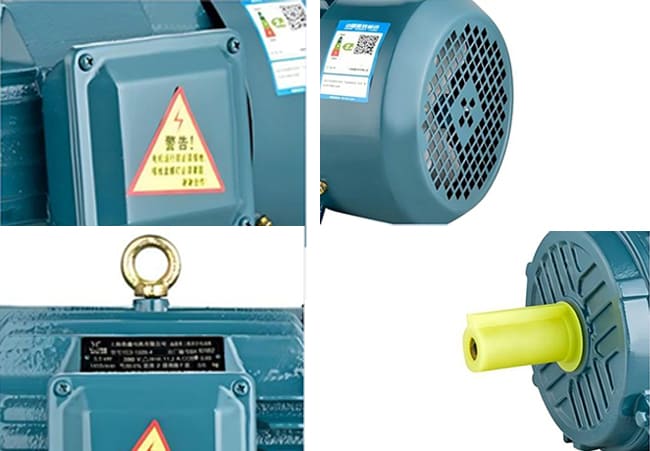

Product Details

1.Motor Junction Box: High-quality junction box for simple, quick, and stable operation.

2.High-Hardness Shaft: Made from premium materials with precision manufacturing for long service life.</p>

3.</s

trong>Heat Dissipation Hood:</b> Excellent heat dissipation performance ensures stable operation of the variable frequency motor.

4.Metal Lifting Ring: A top ring allows easy rope attachment for convenient transportation and movement of the motor.

5.Stable Base: Thickened material and accurate dimensions ensure stable placement during operation.

Send Inquiry Now

Product Support

Hanko Heavy Industry specializes in advanced variable frequency motors for cranes, featuring high-grade copper windings and silicon steel cores. Every unit undergoes rigorous load, insulation, and durability testing before shipment to ensure reliable performance.

Our product range covers low-voltage variable frequency motors and heavy-duty three-phase variable frequency motors. As a professional manufacturer of variable frequency motors, we provide both standard models and customized solutions tailored to specific crane operating requirements. Our products are trusted by customers worldwide for their industrial-grade quality and adaptability.

Send Inquiry Now

Related Products

Crane Pulley Block

The Crane Pulley System uses several pulleys to distribute loads and change rope direction.

Send Inquiry Now
crane hook dimensions

Forged Crane Hook

A forged crane hook is a key lifting component that ensures both operator and load safety.

Send Inquiry Now

Overhead Crane Wheels

Overhead crane wheels are key components of the crane’s traveling mechanism.

Send Inquiry Now

Variable Frequency Motor

The variable frequency motor is a high-performance drive solution for cranes.

Send Inquiry Now

Crane Wire Rope Drum

The crane wire rope drum is a vital lifting component in crane systems. It winds and unwinds the steel rope to raise or lower loads safely and efficiently.

Send Inquiry Now
Crane Grab Buckets

Clamshell Grab Bucket

The clamshell grab bucket is a common lifting attachment used for handling bulk materials such as sand, gravel, coal, grain, and ores.

Send Inquiry Now

Complete Guide

About Hanko

Hanko products are manufactured using high-strength materials and go through strict quality inspections to ensure durability and operational safety.

We offer custom manufacturing services for non-standard parts based on customer drawings or specific requirements.

Our products meet international standards and are exported worldwide, earning the trust of clients across Asia, the Middle East, Europe, and beyond.

What makes a variable frequency motor better than a fixed-speed motor?
It adjusts speed with an inverter, reducing energy use and improving torque stability.
Regular motors cause torque fluctuations and higher wear. A variable frequency motor controller ensures smooth and safe operation.
Yes, we offer AC variable frequency motors, DC variable frequency motors, and permanent magnet variable frequency motors to fit specific crane needs.
Options include variable frequency motor ventilators, fans, and integrated cooling in variable frequency motor controllers, ensuring long-term performance.
