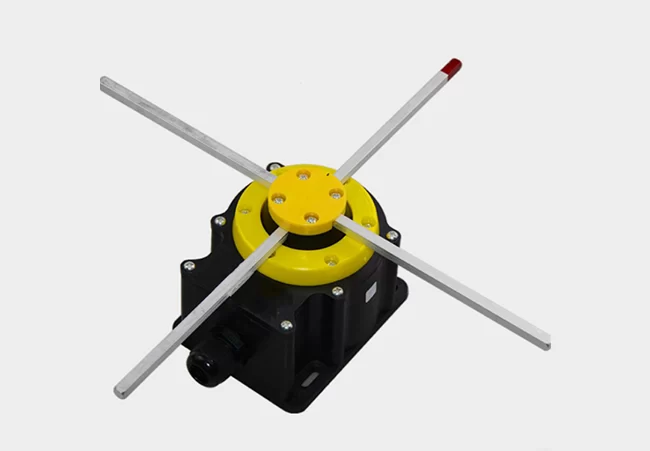

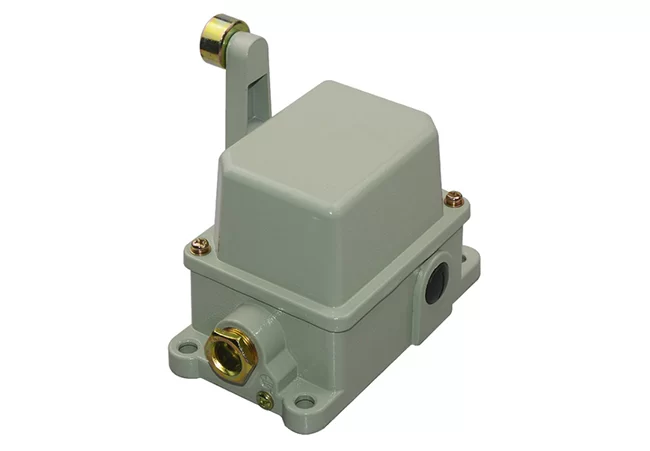

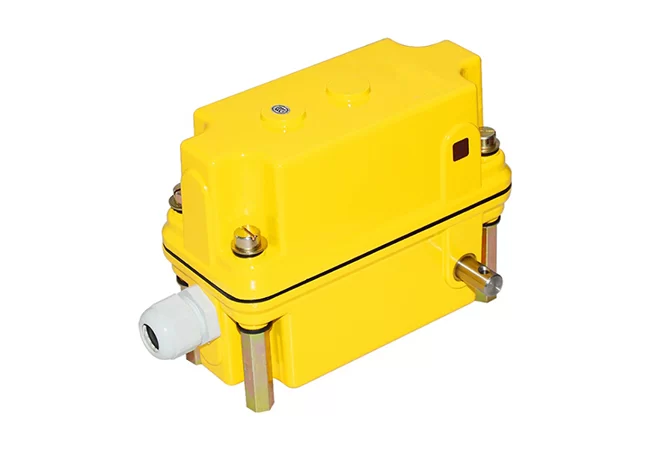

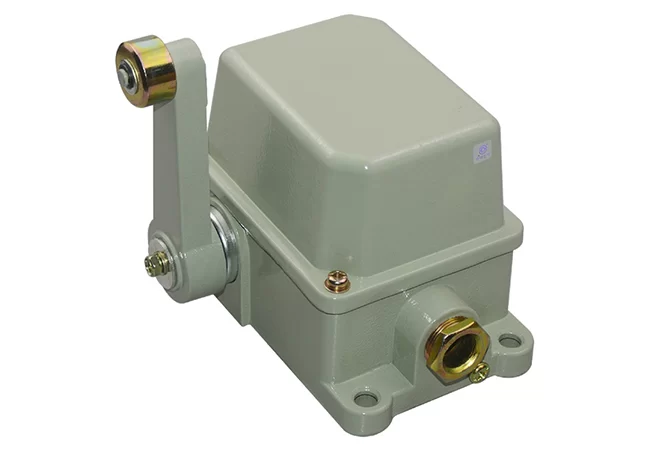

crane limit switch image crane limit switch price Crane-Limit-Switch hoist limit switch crane overhead crane limit switch

Crane Limit Switch

1.Reliable Safety Protection: It prevents overtravel accidents. So it protects equipment and workers.

2.Strong Environmental Adaptability: It withstands harsh conditions. These conditions include dust, water and extreme temperatures.

3.High Precision & Durability: It ensures accurate positioning. It also works stably for a long time.

4.Easy Integration: It is compatible with different types of cranes. This reduces installation and replacement time.

The Crane Limit Switch is a cost-effective safety component for cranes, combining high performance, durability, and easy use. It is essential for improving operational safety and efficiency in industrial hoisting scenarios.

Request For Our Latest Price

The DXZ crane limit switch is equipped with 1 to 6 control circuits and offers 8 gear ratio options.

Standard gear ratio serial number table：

Serial number 1 2 3 4 5 6 7 8
Gear ratio 1：13 1：17 1：46 1：60 1：78 1：210 1：274 1：960

Crane Limit Switch drawing

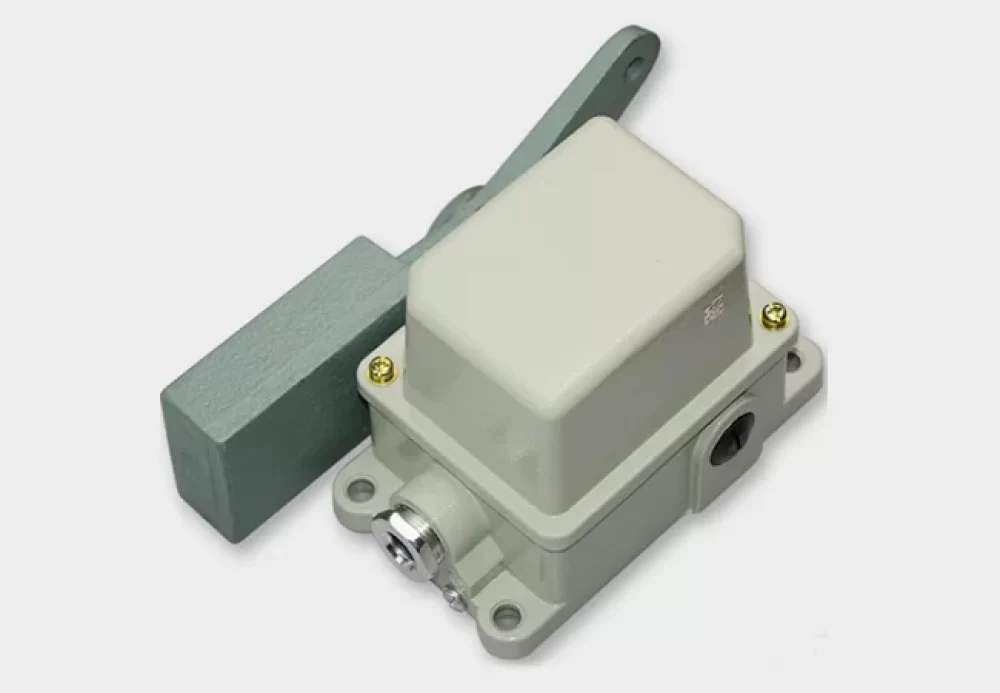

hoist limit switch crane
Download Our Catalog

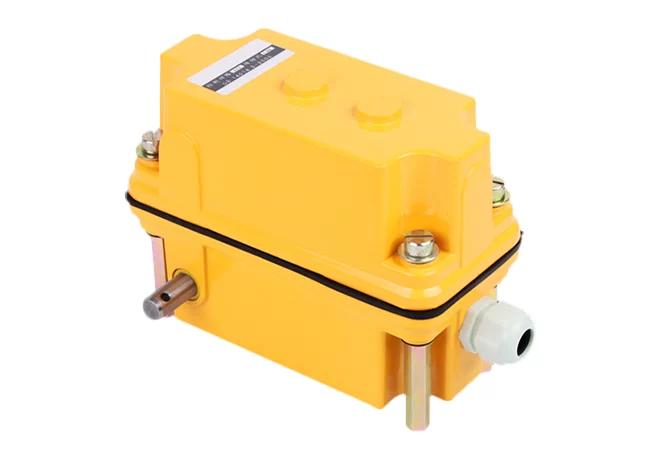

Crane-Limit-Switch-detail5

Product Features and Applications

Features：

  1. The control circuits of the DXZ crane limit switch can be customized from 1 to 6 according to customer requirements. It offers 8 optional gear ratio specifications, including 1:13, 1:17, 1:46, 1:60, 1:78, 1:210, 1:274, and 1:960, and meets the IP65 waterproof and dustproof rating.
  2. It adopts high-precision sensors and adjustable limit points to meet the strict positioning requirements of heavy-load operations.
  3. Made of high-strength engineering plastics and corrosion-resistant metals, it can withstand more than tens of thousands of mechanical operations, thereby reducing maintenance costs.
  4. 4.Equipped with a universal mounting bracket and featuring a variety of electrical interfaces (e.g., AC/DC power supplies), it is compatible with most crane brands and control systems.

Applications​

Crane Limit Switch is widely used in industrial cranes, such as those for material handling in steel mills, logistics warehouses, container terminals and construction sites. It is also suitable for special cranes, including explosion-proof cranes and metallurgical cranes. It provides customized safety solutions for these cranes.

Send Inquiry Now
Crane-Limit-Switch details

Product Details

The Crane Limit Switch features a modular design, consisting of a sensing unit, control unit, and housing. The sensing unit uses a roller lever or plunger structure, which triggers the internal microswitch when in contact with the crane’s travel stop. The control unit supports both normally open (NO) and normally closed (NC) contacts, compatible with 24V DC to 380V AC power supplies. The housing is made of flame-retardant ABS plastic, with a temperature resistance range of -40°C to +55°C, adapting to cold and high-temperature environments.

Send Inquiry Now

Product Support

Hanko Heavy Industry specializes in the manufacturing, processing, and sales of crane limit switches. It focuses wholeheartedly on every tiny detail throughout the entire process, from R&D and production to delivery from the warehouse. The material control department carefully inspects and registers the selection, warehousing, and outbound of materials and accessories one by one. It prohibits unqualified switch components from entering the assembly platform, ensuring product quality and enabling the fast delivery of products. In the practical application at a large port, after years of operation under harsh working conditions, the products still run stably, accurately trigger limit signals, effectively prevent cranes from over-limit operations, and ensure the safety of personnel and equipment. They have won high praise from users, and their quality is trustworthy.

Send Inquiry Now

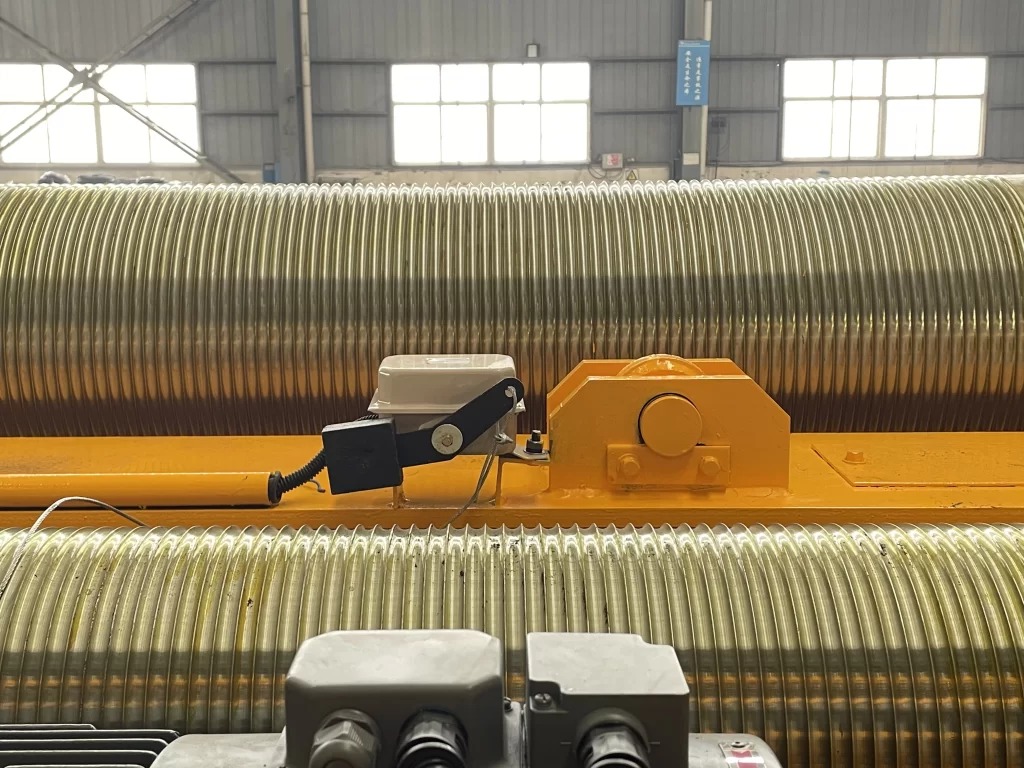

Hanko Heavy Industry production equipment of Crane limit switch

Related Products

Crane Pulley Block

The Crane Pulley System uses several pulleys to distribute loads and change rope direction.

Send Inquiry Now
crane hook dimensions

Forged Crane Hook

A forged crane hook is a key lifting component that ensures both operator and load safety.

Send Inquiry Now

Overhead Crane Wheels

Overhead crane wheels are key components of the crane’s traveling mechanism.

Send Inquiry Now

Variable Frequency Motor

The variable frequency motor is a high-performance drive solution for cranes.

Send Inquiry Now

Crane Wire Rope Drum

The crane wire rope drum is a vital lifting component in crane systems. It winds and unwinds the steel rope to raise or lower loads safely and efficiently.

Send Inquiry Now
Crane Grab Buckets

Clamshell Grab Bucket

The clamshell grab bucket is a common lifting attachment used for handling bulk materials such as sand, gravel, coal, grain, and ores.

Send Inquiry Now

Complete Guide

About Hanko

Hanko products are manufactured using high-strength materials and go through strict quality inspections to ensure durability and operational safety.

We offer custom manufacturing services for non-standard parts based on customer drawings or specific requirements.

Our products meet international standards and are exported worldwide, earning the trust of clients across Asia, the Middle East, Europe, and beyond.

Why are limit switches installed on cranes?
Limit switches are used to prevent hooks, hoisting mechanisms, or trolleys from moving beyond safe operating positions, avoiding equipment damage or safety accidents.
They are usually connected to the low-voltage part of the control circuit. They stop the crane by cutting off the control circuit, rather than directly cutting off the main power supply.
Mechanical jamming or wear, contact erosion or poor contact, loose wiring, and improper adjustment of position.
Crane hoist limit switches (to prevent hooks from going too high/low), crane long travel limit switches (for the crane’s main movement along rails), trolley travel limit switches (for the trolley’s movement on the crane), crane rotary limit switches (for tower cranes), and crane overload limit switches (classified as protective devices).
