Crane Drum Brake

If you need anything, feel free to contact us anytime.
Get a Quick Quote
Crane-Brake-Assembly2 crane-brake-for-sale Crane-hoist-brake

Crane Drum Brake

1.High Strength & Reliability: Crane drum brakes are built with premium crane brake drum material, ensuring durability under heavy loads.

2.Efficient Braking System: Overhead crane drum brake delivers smooth stopping and holding power for safe crane operations.

3.Low Maintenance Design: Precision-machined surfaces reduce wear, extending service life and lowering replacement costs.

Crane drum brakes combine strength, safety, and long-term performance, making them essential for stable lifting operations.

Request For Our Latest Price
Braketype Thrustertype Braketorque(Nm) D h1 k i d n b F G J E H Weight

(kg)
YWZ2-100/10 MYT2-10/2.5 20~40 100 100 110 40 13 8 70 70 130 175 130 335 22
YWZ2-200/25 MYT2-25/4 100~200 200 170 175 60 17 8 90 100 210 245 200 475 33
YWZ2-300/25 MYT2-25/4 160~320 300 240 250 80 22 10 140 130 295 358 275 595 65
YWZ2-300/50 MYT2-50/6 315~630 300 240 250 80 22 10 140 130 295 358 275 595 86
YWZ2-400/50 MYT2-50/6 500~1000 400 320 325 130 22 12 180 180 350 420 350 745 111
YWZ2-400/100 MYT2-100/6 800~1600 400 320 325 130 22 12 180 180 350 420 350 810 115
YWZ2-400/125 MYT2-125/6 1000~2000 400 320 325 130 22 12 180 180 350 420 350 810 133
YWZ2-500/125 MYT2-125/10 1250~2500 500 400 380 150 22 16 200 200 405 484 410 915 212
YWZ2-600/200 MYT2-200/12 2500~5000 600 475 475 170 27 20 240 220 500 590 500 1075 309
YWZ2-700/200 MYT2-200/12 4000~8000 700 550 540 200 34 25 280 270 575 760 550 1255 390
YWZ2-800/200 MYT2-200/12 5000~10000 800 600 620 240 34 28 320 310 660 860 700 1480 692
YWZ2-800/300 MYT2-300/12 6300~12500 800 600 620 240 34 28 320 310 660 860 700 1480 680

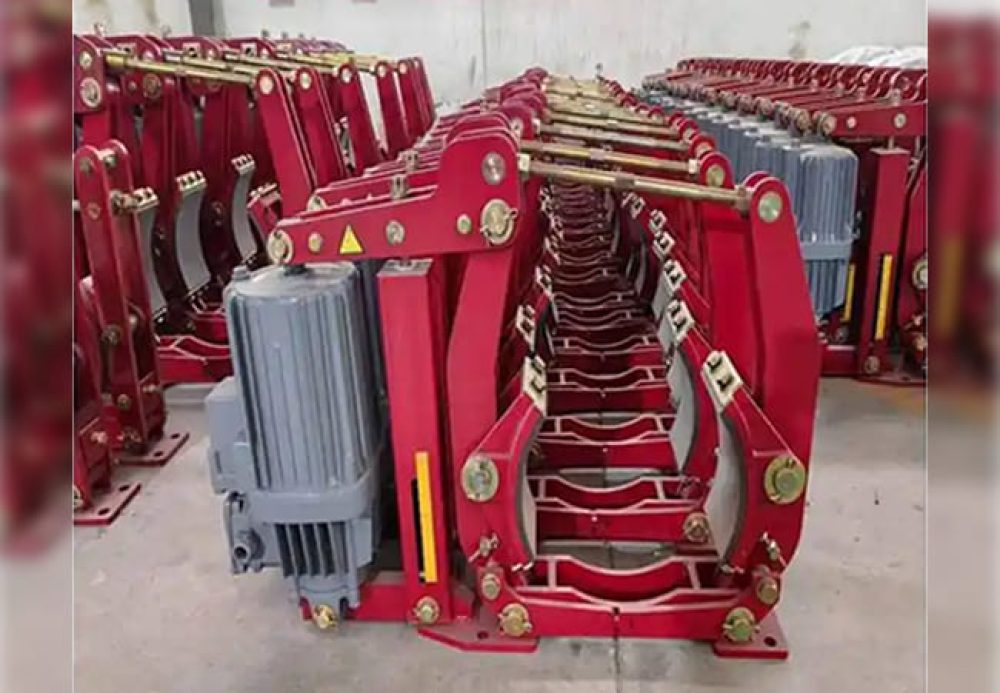

Crane-hoist-brake
Download Our Catalog

Product Features and Applications

Features:

1.Spring-set fail-safe design: Automatically engages during power failure, providing 125%+ full-load torque for safe and reliable heavy-load holding.

2.Durable non-asbestos linings: Heat/wear-resistant, stable performance in frequent start-stop cycles.

3.Adjustable torque & sealed structure: Adapts to different loads; dust/moisture-proof for harsh environments.

Applications:

Crane drum brakes are widely used in port gantry cranes, ship loaders, and mining hoists (high-torque, dusty/vibrant conditions). Essential for steel mill overhead cranes (high-temperature ladle lifting) and logistics/manufacturing hubs, ensuring reliable continuous operation.

Send Inquiry Now

Product Details

  1. High-Strength Construction: Each crane brake drum is made from cast or forged steel housings, with heat-treated shafts designed for durability.
  2. Friction Stability:Brake linings are tested for high friction stability, ensuring reliable braking force under heavy-duty conditions.
  3. Fast Response Mechanism:Springs and actuators provide quick response, enhancing safety and performance.
Send Inquiry Now

Product Support

Hanko Heavy Industry specializes in the research and manufacturing of crane drum brakes. We are manufacturers of gantry crane brakes and use high-strength steel, precision machining, and ISO-certified quality systems to ensure optimal safety and reliability.

Every overhead crane drum brake is tested under dynamic load conditions to ensure stable braking force and extended service life. We provide both standard and customized solutions to match your specific needs in overhead crane brake mechanisms. Our eot crane brake drum designs meet stringent performance requirements, ensuring compatibility with modern crane hoist brake systems.

Send Inquiry Now

Related Products

Crane Pulley Block

The Crane Pulley System uses several pulleys to distribute loads and change rope direction.

Send Inquiry Now
crane hook dimensions

Forged Crane Hook

A forged crane hook is a key lifting component that ensures both operator and load safety.

Send Inquiry Now

Overhead Crane Wheels

Overhead crane wheels are key components of the crane’s traveling mechanism.

Send Inquiry Now

Variable Frequency Motor

The variable frequency motor is a high-performance drive solution for cranes.

Send Inquiry Now

Crane Wire Rope Drum

The crane wire rope drum is a vital lifting component in crane systems. It winds and unwinds the steel rope to raise or lower loads safely and efficiently.

Send Inquiry Now
Crane Grab Buckets

Clamshell Grab Bucket

The clamshell grab bucket is a common lifting attachment used for handling bulk materials such as sand, gravel, coal, grain, and ores.

Send Inquiry Now

Complete Guide

About Hanko

Hanko products are manufactured using high-strength materials and go through strict quality inspections to ensure durability and operational safety.

We offer custom manufacturing services for non-standard parts based on customer drawings or specific requirements.

Our products meet international standards and are exported worldwide, earning the trust of clients across Asia, the Middle East, Europe, and beyond.

What types of overhead crane brakes are available?
Common types include overhead crane hoist brakes, overhead crane disc brakes, and drum-type brakes, each designed for specific crane hoist brake system requirements.
Yes. Overhead crane brakes can be customized for torque, size, power source, and mounting to fit different overhead cranes and crane hoist brake systems.
Overhead crane brakes are used in steel plants, shipyards, mining, logistics centers, and power stations, where reliable braking is critical.
Overhead crane hoist brakes hold loads securely in place, prevent load slipping, and provide safe stopping even under emergency conditions.
